Thruster for Mars mission breaks records

The most powerful Hall thruster the world has ever seen showed its mettle at NASA Glenn | Medium Read

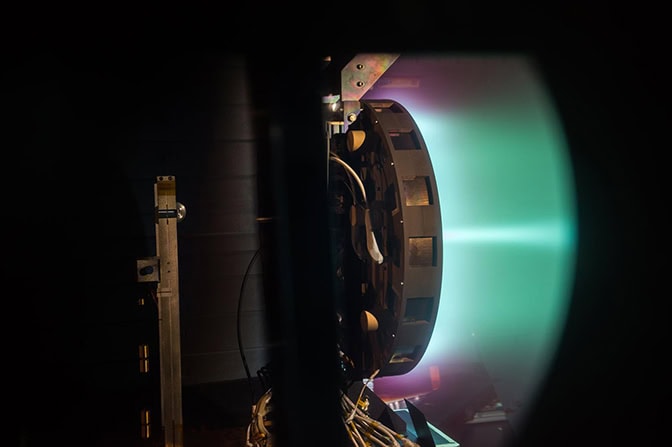

EnlargeA side shot of the X3 firing at 50 kilowatts.
IMAGE:  A side shot of the X3 firing at 50 kilowatts. Photo credit: NASA

An advanced space engine in the running to propel humans to Mars has broken the records for operating current, power and thrust for a device of its kind, known as a Hall thruster.

The development of the thruster was led by University of Michigan Aerospace Engineering Professor Alec D. Gallimore, who is also the Robert J. Vlasic Dean of Engineering.

Hall thrusters offer exceptionally efficient plasma-based spacecraft propulsion by accelerating small amounts of propellant very quickly using electric and magnetic fields. They can achieve top speeds with a tiny fraction of the fuel required in a chemical rocket.

“Mars missions are just on the horizon, and we already know that Hall thrusters work well in space,” Dean Gallimore said. “They can be optimized either for carrying equipment with minimal energy and propellant over the course of a year or so, or for speed – carrying the crew to Mars much more quickly.”

EnlargeA head-on shot of the thruster firing at 50 kilowatts

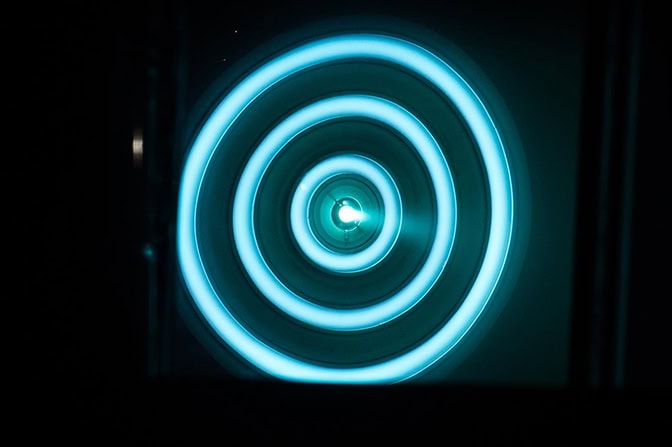

IMAGE:  A head-on shot of the thruster firing at 50 kilowatts, viewed through a warped mirror in the vacuum chamber. Photo credit: NASA

The challenge is to make them larger and more powerful. The X3, a Hall thruster designed by researchers at U-M, NASA and the US Air Force, shattered the previous thrust record set by a Hall thruster, coming in at 5.4 newtons of force compared with 3.3 newtons. The improvement in thrust is especially important for crewed mission: it means faster acceleration and shorter travel times. The X3 also more than doubled the operating current record (250 amperes vs 112 amperes) and ran at a slightly higher power (102 kilowatts vs 98 kilowatts).

The X3 is one of three prototype “Mars engines” to be turned into a full propulsion system with funding from NASA. Scott Hall, a doctoral student in aerospace engineering at U-M, carried out the tests at the NASA Glenn Research Center in Cleveland, Ohio, along with Hani Kamhawi, PhD, a NASA Glenn research scientist who has been heavily involved in the development of the X3. The experiments were the culmination of more than five years of building, testing and improving the thruster.

NASA Glenn, which specializes in solar electric propulsion, is currently home to the only vacuum chamber in the US that can handle the X3 thruster. The thruster produces so much exhaust that vacuum pumps at other chambers can’t keep up. Then, xenon that has been shot out the back of the engine can drift back into the plasma plume, muddying the results. But as of January 2018, an upgrade of the vacuum chamber in Gallimore’s lab will enable X3 testing right at U-M.

For now, the X3 team snagged a test window from late July through August this year. Hall loaded the X3 into a 26-foot moving truck and drove it down to Cleveland in February. There, he and Kamhawi  – supported by a team of NASA researchers, engineers and technicians – began a painstaking inspection of the X3, dismantling it and examining the parts one by one. One of the issues they uncovered and fixed was a propellant leak in the thruster, which would have reduced its thrust in the tests.

Setting records


Newtons of force


Kilowatts of power


Amperes of current

In late May, Hall and Kamhawi began to reassemble the X3 and prepare it for its turn in the vacuum chamber. Once the timer started rolling on their test, they had four weeks to set up the thrust stand, mount the thruster and connect it to xenon and electrical power supplies. Hall had built a custom thrust stand to bear the X3’s 500-pound weight and withstand its force, as existing stands would collapse under it. Throughout the process, Hall and Kamhawi were supported by NASA researchers, engineers and technicians.

“The big moment is when you close the door and pump down the chamber,” said Hall.

After the 20 hours of pumping to achieve a space-like vacuum, Hall and Kamhawi spent 12-hour days testing the X3 from seven in the morning to seven at night.

Even small breakages feel like big problems when it takes days to gradually bring air back into the chamber, get in to make the repair, and pump the air back out again. But in spite of the challenges, Hall and Kamhawi brought the X3 up to its record-breaking power, current and thrust over the 25 days of testing.

When problems arose, Hall would consult Dean Gallimore over the phone. “Alec is so clear and level-headed. I would go to him with my head in my hands, thinking something terrible had happened. But he always believes we are going to be fine, and we always are,” said Hall.

EnlargeResearcher makes adjustments on an X3 thruster

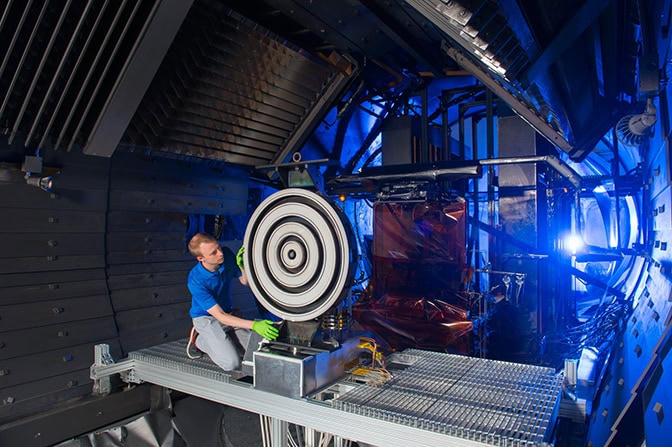

IMAGE:  ​Scott Hall makes some final adjustments on the thruster before the test begins. Photo credit: NASA

Looking ahead, the X3 will at last be integrated with the power supplies under development by Aerojet Rocketdyne, a rocket and missile propulsion manufacturer and lead on the propulsion system grant from NASA. In the spring of 2018, Hall expects to be back at NASA Glenn running a 100-hour test of the X3 with Aerojet Rocketdyne’s power processing system.

The X3 is designed to run at double its current power of 100 kilowatts, but making the leap to 200 kilowatts is outside the scope of the current project. As for the competing designs for that future Mars mission, Hall says he’s heard rumors around NASA, but he hasn’t seen any published results that he can compare to the X3’s new stats.

The project is funded through NASA’s Next Space Technologies for Exploration Partnership, which supports not just propulsion systems but also habitat systems and in-space manufacturing.

Dean Gallimore is also the Richard F. and Eleanor A. Towner Professor, an Arthur F. Thurnau Professor, and a professor of aerospace engineering and applied physics. Kamhawi is also Hall’s NASA mentor as part of the NASA Space Technology Research Fellowship. The $1 million upgrade of the test facility in Gallimore’s lab is funded in part by the Air Force Office of Scientific Research, with additional support from NASA’s Jet Propulsion Laboratory and U-M.
